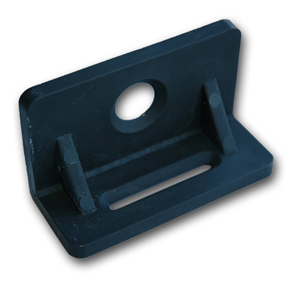

Dutchclamp Polefix

Dutchclamp PolefixApplications: Using a stainless steel strap and two Polefix holders, all types of Dutchclamp cable clamps, cable blocks and other products can be attached to (steel or concrete) poles that may not or cannot be drilled into.

Characteristics:
·  Made of glass fibre reinforced polyamide (PA).
·  Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.
·  Self-extinguishing V-0 (UL94), halogen-free, low smoke.
·  Temperature range from -40 °C to 120 °C.
·  Black coloured.
Dimensions in mm
Type
mounting hole ø
L W H thickness groove length groove width
Polefix
15 80 47 33 6 40 2,5
